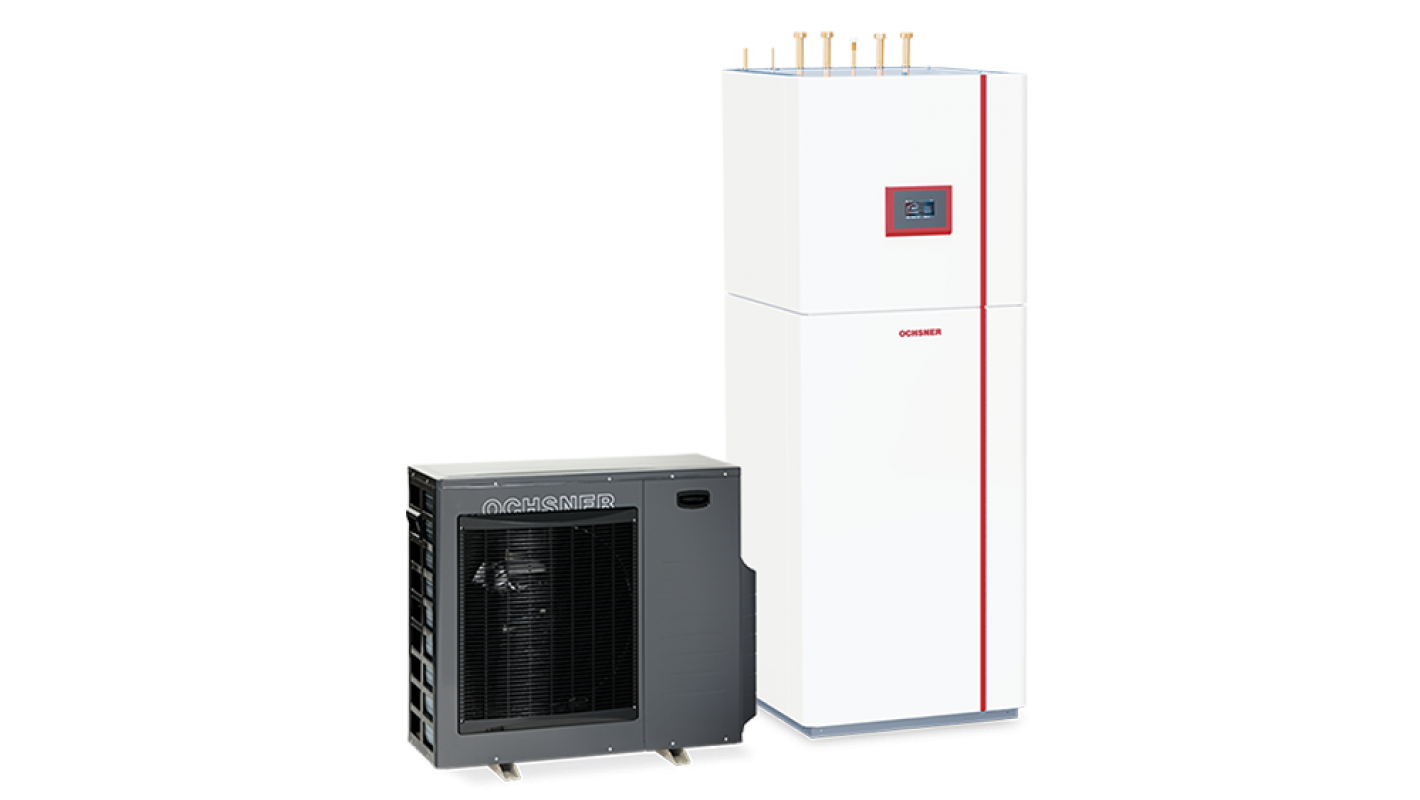

Ochsner Air base 109 C11B T200
AIR SOURCE HEAT PUMPS WITH INVERTER TECHNOLOGY, COMPACT HEATING AND COOLING SOLUTIONS
Standard point A10/W35
Heating output range [kW] 3.25 - 6.78
Total heating output/power consumption [kW] 4.88 / 1.01
Operating point A35/W18
Cooling capacity range [kW] 2.22 - 6.46
Nominal cooling capacity [kW] 4,91
Total nominal power consumption [kW] 1,02
Energy efficiency ratio EER at nominal output 4,81
Sound power/sound pressure level (at 10 m distance), outdoor unit [dBA] 60.0 / 35.0
Refrigerant R410A
Application range min./max [°C] -20 / 35
