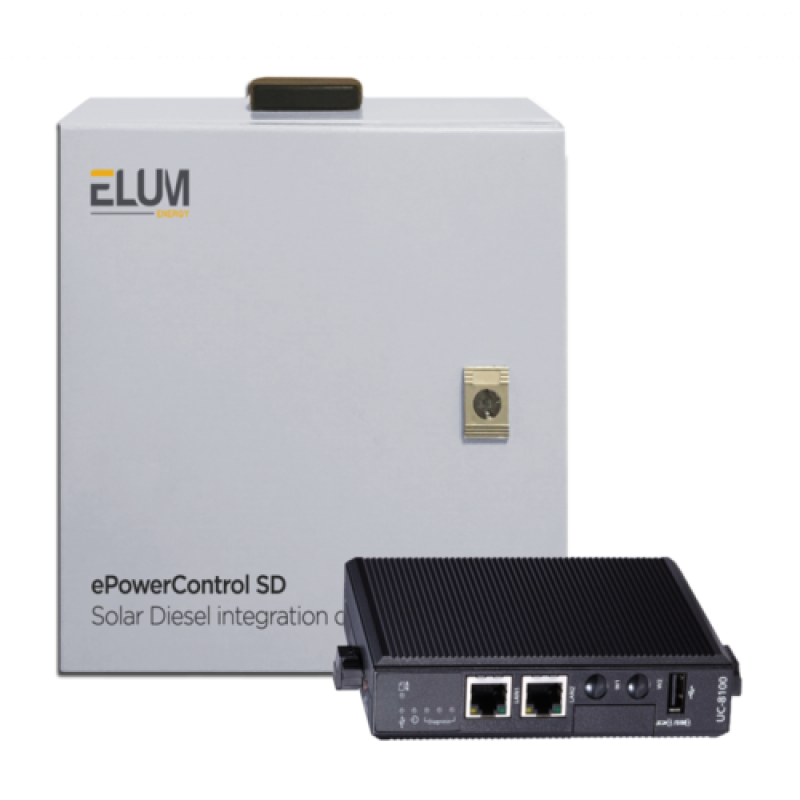

ePowerControl SD+
The ePowerControl SD+ is a solar diesel integration controller for the safe, simple and easy integration of solar power plants with a single diesel generator set.
The controller has a wide range of compatibility with different equipment, integrated data collection functions and an easy to use and flexible commissioning interface.
This solution reduces commissioning time and costs and offers more compatibility options during the design phases of the project.
Dimensions (cm) 101 x 27 x 128 mm 132 x 122 x 87 mm
Weight (without accessories) 0,3 kg 1,4 kg
Maximum BESS capacity 100 kWh 300 kWh
Standards EC 60068-2-27, IEC 61000-4-2/3/4/6/8, UL 60950-1, IK10, UL508A
Ambient conditions
Temperature -10 to 60 °C -40 °C to 70 °C
Humidity 5% to 95% (non condensing)
Power supply
Input parameters 12 to 24 VDC, 480 mA @ 12 VDC, 225 mA @24 VDC
Power consumption (max) 20W 50W
UPS Optional - 19,2 / 81,6 / 288 Wh (Up to 24h autonomy)
Communication & security
Compatible protocols Modbus TCP/RTU, Solivia
Available ports 2 x serial (RS485/RS422/RS232)
2 x LAN (RJ45 - 100 Mbps)
2x USB 2.0-A
4 x serial (RS485/RS422/RS232)
4 x LAN (RJ45 - 1,000 Mbps)
1 x VGA / 2x USB 2.0-A
Embedded modem LTE/HSPA+/GSM/GPRS/EDGE/EV-DO
Remote access ePowerMonitor / 3rd party platforms (VCOM, QOS, S4E)
Other interfaces
Extensions (I/Os, RS485, weather station) 2 modules max 4 modules max.
Power measurement From compatible meter models only1
Data acquisition
Collected data Active / reactive power, current, voltage, ...2
Equipment alarms Mail & web notifications, configurable thresholds on all read variables
Data acquisition granularity 5 minutes for data, real-time for alarms3
Data storage / export 8Go (up to 256Go) - >100 days of data
stored / USB CSV export
32Go (up to 256Go) - >100 days of data
stored / USB CSV export
